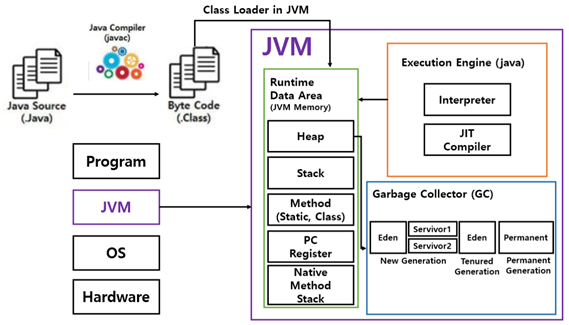

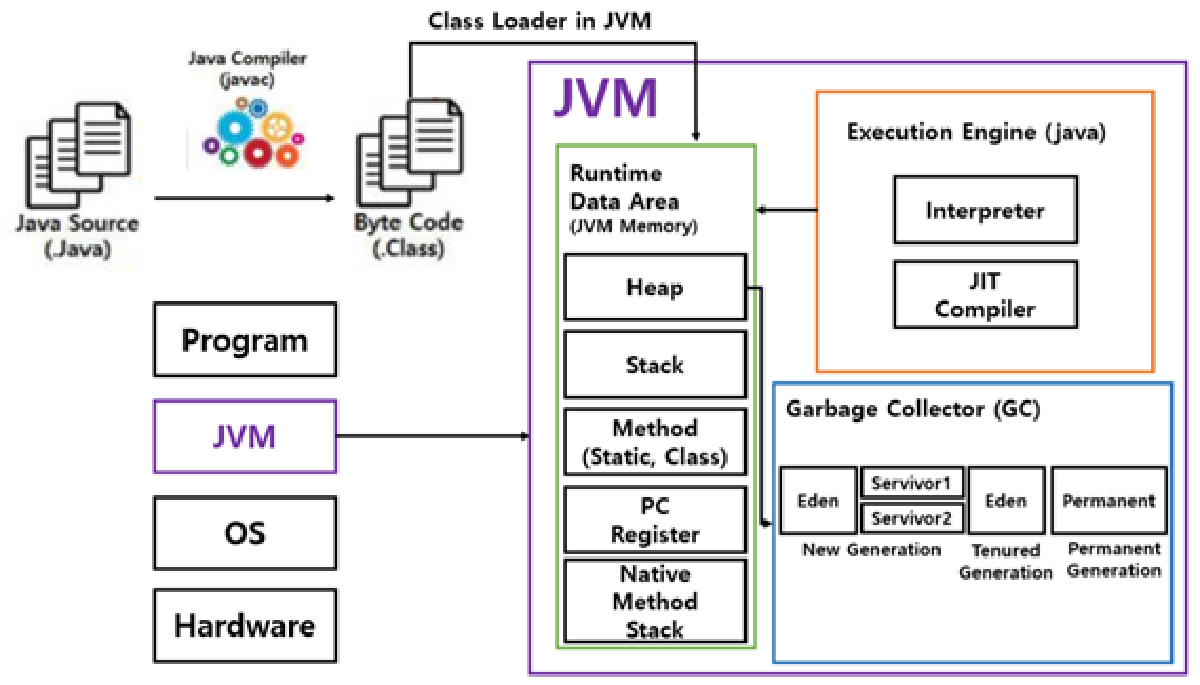

JVM Components

#

1. Class Loader

#

JVM’s Class Loader loads *.class files (bytecode files converted by javac) into Runtime Data Areas to run the program.

2. Execution Engine

#

Executes the bytecode loaded into Runtime Data Areas by the Class Loader. It converts bytecode to machine code and executes it instruction by instruction, composed of 1-byte OpCode and operands.

Key Components

#

• Interpreter
• Compiler (Just-in-Time)

3. Garbage Collector

#

Responsible for removing unreferenced objects in the Heap area.

Before Java, programmers managed all program memory. In Java, the JVM manages program memory through a process called garbage collection.

4. Runtime Data Areas

#

JVM’s memory area allocated from the OS. It holds data needed to run Java applications.

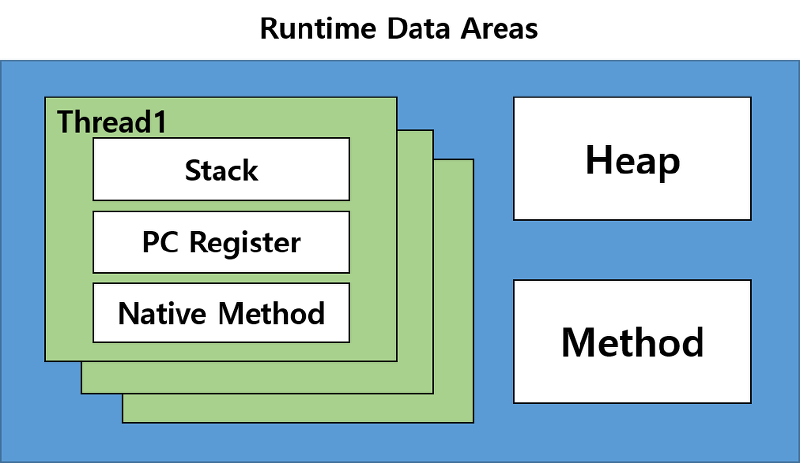

Runtime Data Areas are divided into 5 areas as follows.

(1) Method Area

#

Created when the JVM starts, it stores runtime constant pools, field and method code, static variables, method bytecode, etc. for each class and interface read by the JVM.

1-1 Type Information

#

• Whether it’s an Interface
• Type name including package name
• Type access modifiers
• Associated Interface list

1-2 Runtime Constant Pool

#

• Stores all references to Type, Field, and Method
• JVM finds and references memory addresses through the Runtime Constant Pool

1-3 Field Information

#

• Field type
• Field access modifiers

1-4 Method Information

#

• Stores metadata for all Methods including Constructors
• Stores Method name, parameter count and type, return type, access modifiers, bytecode, local variable section size, etc.

1-5 Class Variable

#

• Stores variables declared with the static keyword
• Actual instances of non-primitive static variables are stored in Heap memory

(2) Heap Area

#

Space for storing objects created with the new operator.

(3) Stack Area

#

Stored as separate Frames per Thread, with the following elements stored.

3-1 Local Variable Area

#

• Stores temporary data occurring during Method execution, such as local variables, parameters, and method call addresses
• Stored in 4-byte units: 4-byte primitives like int, float occupy 1 cell; 8-byte primitives like double occupy 2 cells
• bool generally occupies 1 cell

3-2 Operand Stack

#

• The Method’s workspace
• Indicates which commands to execute with which operands

3-3 Frame Data

#

• Includes Constant Pool Resolution, Method Return, Exception Dispatch, etc.
• Also holds referenced Exception tables
• When an Exception occurs, JVM references this table to determine how to handle the Exception

(4) PC Register

#

Created when a Thread starts, one exists per thread.

Holds the address of the currently executing portion of the Thread, recording which part should be executed with which instruction.

(5) Native Method Stack

#

Area for executing programs written in actual executable machine code rather than bytecode generated from Java program compilation.

• Space for code written in languages other than Java
• Converted to bytecode and stored through the Java Native Interface
• Area where the kernel grabs the stack and independently executes the program, like a general program

JVM Execution Order

#

1. Memory Allocation

   • When a program runs, JVM receives memory needed to execute the program from the OS
   • JVM divides this memory into multiple areas for use

2. Compilation

   • Java Compiler (javac) compiles *.java files and converts them to *.class Java bytecode

3. Class Loading

   • Compiled *.class files are loaded into JVM memory through the Class Loader

4. Bytecode Interpretation

   • Loaded *.class files are interpreted into machine code through the Execution Engine

5. Execution and Management

   • Interpreted bytecode is placed in memory areas and actually executed
   • During execution, JVM performs memory management tasks such as thread synchronization and garbage collector as needed
